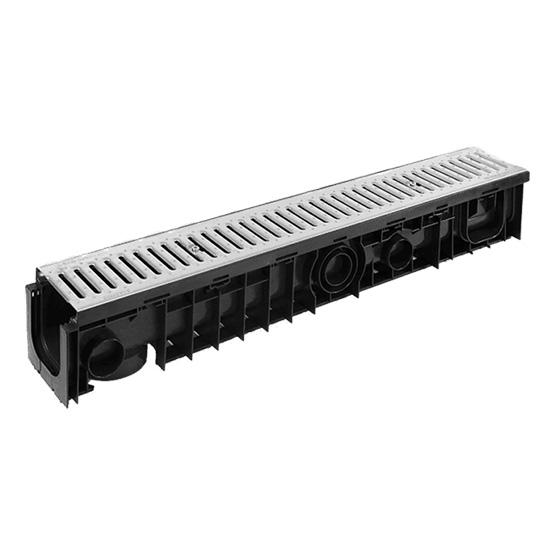

SABdrain 917 ( 100mm X 100mm) Stainless Steel Grated Channel is a robust polypropylene channel fitted with Class A rated 304 stainless steel heel guard grates featuring anti-slip nodules. Designed for secure, long-term performance, the lockdown system prevents grate movement and unauthorised access. Ideal for driveways, pools, pathways, and other residential or commercial applications.

Key Features and specifications

• Internal Dimensions: 100mm x 100mm X 1000mm
• Chemical Resistance: Yes
• Non Flammable: Yes
• Material: Stainless Steel
• Load Class: Residential,A
• Sold individually or in bulk

Applications

• Driveways & footpaths
• Pools
• Other residential or commercial application

Installation Tips

• Minimum concrete strength of 25MPa is recommended
• The finished level of the concrete encasement should be 3-5mm above the channel edge.
• Expansion control joints are recommended for protection of the concrete encasement.
